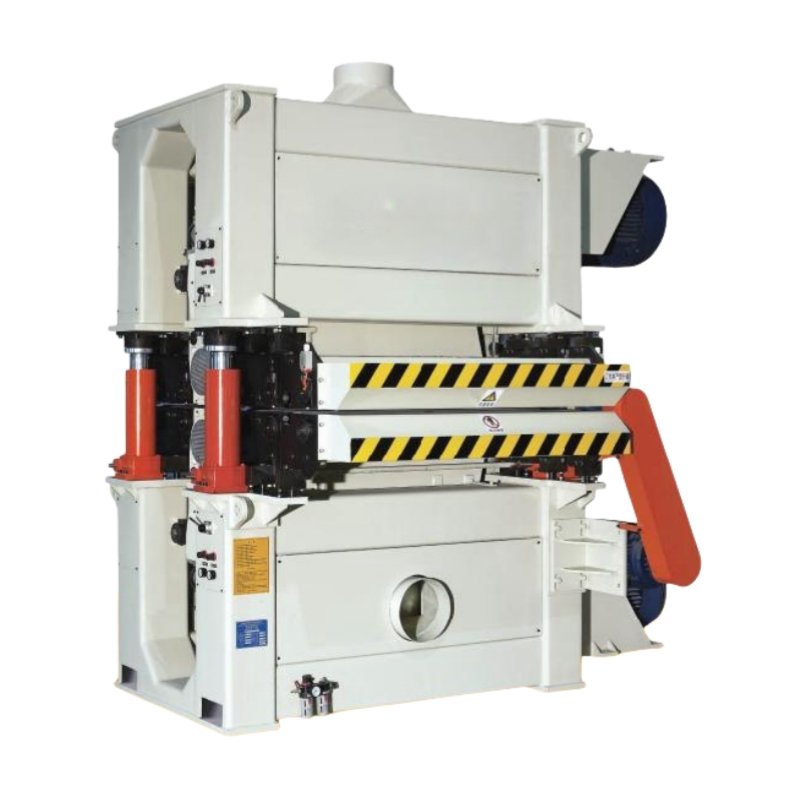

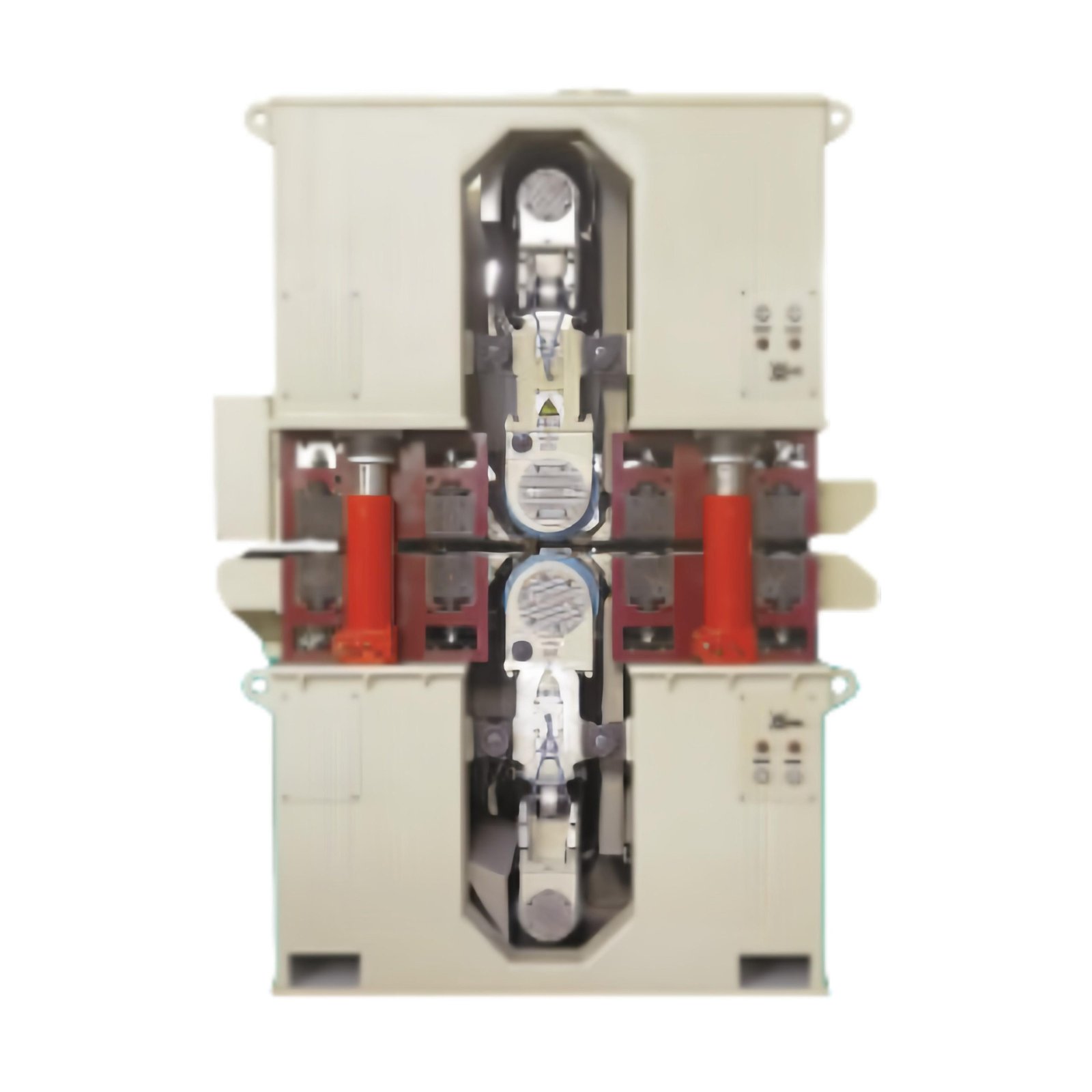

Two Side Sanding Machine For Plywood
Two Side Sanding Machine For Calibrating Plywood
Two Side Sanding Machine main Technical parameters
| Item | Discription | Parameter | Remark |
|---|---|---|---|
| 1 | Sanding width | 40-1300mm | |
| 2 | Sanding thickness | 3-100mm | |
| 3 | Abrasive belt speed | 28m/s | |
| 4 | Size of sanding belt | 1330*2800mm | |
| 5 | Voltage | 380V 50Hz 415V 50HZ | CHINT Schneider |
| 6 | Main motor | 75kw*1 75kw*1 | |
| 7 | Transport reducer | 11kw | Double Drive |
| 8 | Transport speed | 10-40m/s | |
| 9 | Lifting motor | 0.75kw | |
| 10 | Brushing motor | 0.75kw | |
| 11 | Total motor | 163.25kw | |
| 12 | Operating pressure | 0.6MPa | |
| 13 | Dust extraction | 15000 | |
| 14 | Roller Diameter | 320mm | |
| 15 | Dimension | 2800*3100*3050mm | |
| 16 | Weight | 15500 Kgs |
