plywood sanding machine system

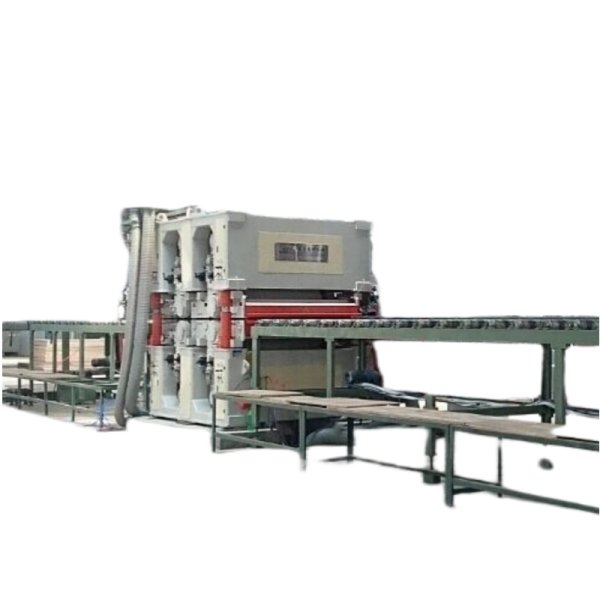

Automatic Plywood Calibration Sanding Machine Production Line

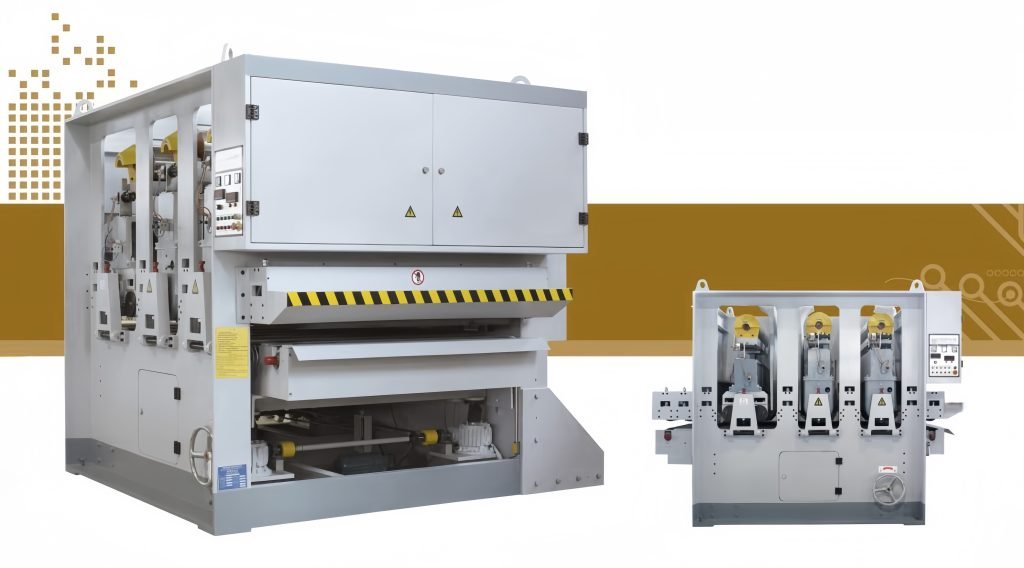

--- SANDING(POLISHING) MACHINE WITH 3 HEADS ---
| Item | Name | Parameter | Remark |
|---|---|---|---|
| 1 | Sanding width | 40-1300mm | |
| 2 | Sanding thickness | 3-50mm | |
| 3 | Abrasive belt speed | 25m/s | |
| 4 | Size of sanding belt | 1330*2800mm | |
| 5 | Voltage | 380V 50Hz | CHINT Schneider |
| 6 | Main motor | 55kw*30KW 15KW | |
| 7 | Transport reducer | 11kw | |
| 8 | Transport speed | 20-60m/s | |
| 9 | Lifting motor | 0.75kw | |
| 10 | brushing motor | 0.75kw | |
| 11 | Total motor | 112.5KW | |
| 12 | Operating pressure | 0.6MPa(Constant pressure） | |
| 13 | Dust extraction | 15000m³/h | |
| 14 | Roller Diameter | 300MM 320MM pad | rubber 80 rubber 30 pad |
| 15 | Dimension | 3140*2770*2440 | |
| 16 | Weight | 10000kg |

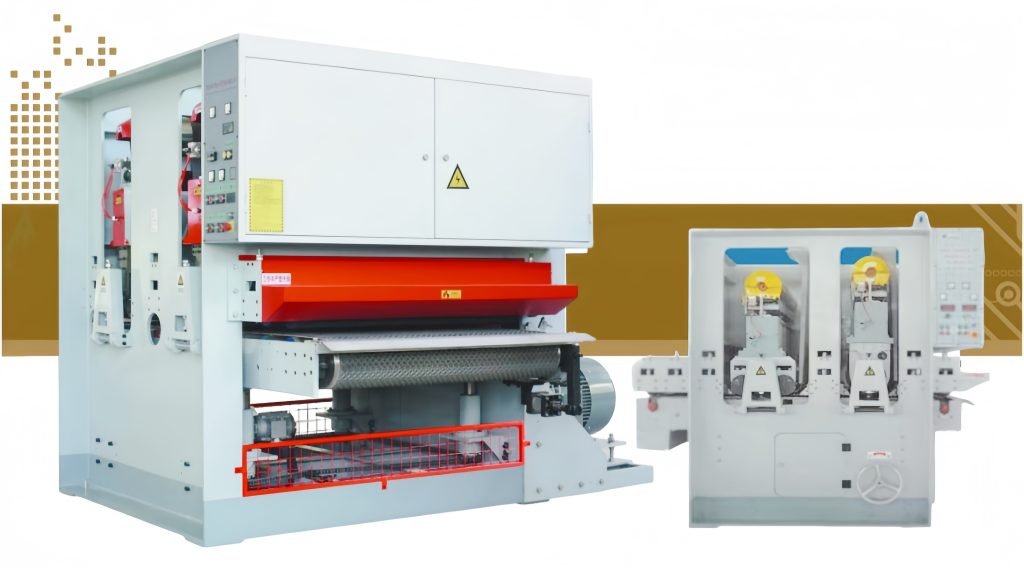

--- SANDING(POLISHING) MACHINE WITH 2 HEADS ---
| Item | Name | Parameter | Remark |
|---|---|---|---|
| 1 | Sanding width | 40-1300mm | |
| 2 | Sanding thickness | 3-80mm | |
| 3 | Abrasive belt speed | 25m/s | |
| 4 | Size of sanding belt | 1330*2620mm | |
| 5 | Voltage | 380V 50Hz | CHINT Schneider |
| 6 | Main motor | 55kw*1 45kw*1 | |
| 7 | Transport reducer | 7.5kw | |
| 8 | Transport speed | 10-30m/s | |
| 9 | Lifting motor | 0.75kw | |
| 10 | brushing motor | 0.37kw | |
| 11 | Total motor | 108.62kw | |
| 12 | Operating pressure | 0.6MPa(Constant pressure) | |
| 13 | Dust extraction | 8000㎥/h | |
| 14 | Roller Diameter | 300MM 320 MM | Steel rubber |
| 15 | Dimension | 2400*2770*2440 | |
| 16 | Weight | 8500kg |
