8ft Hydraulic Log Debarker for plywood
1.8ft Hydraulic Log Debarker for plywood Machine adapts special design so when the bulge of one side been get rid of, the good skin of another side will not be peeled off.
2. The knife gap changes with the diameter of the log. When the log diameter is large, the knife gap will automatically open up, and when the log diameter is small, it will automatically close down. As a result, the knife feeding position will automatically adjusted. In this way, the debarker will not cut more good skin when the log is small and the skin can be successfully peeled off when the log is large.

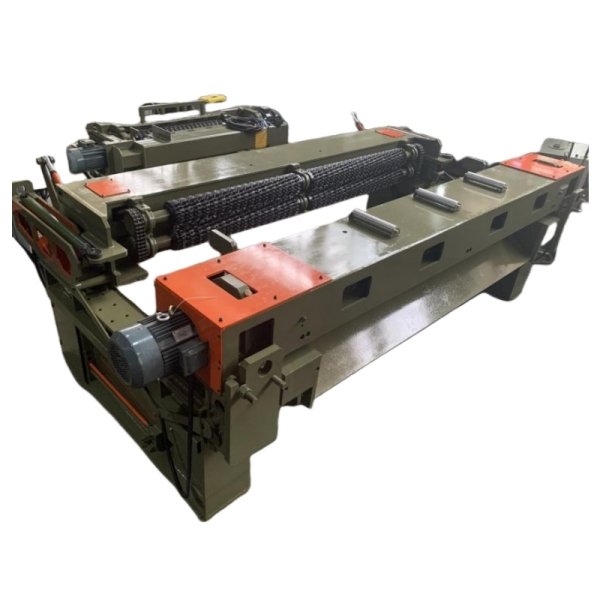

8 Feet Hydraulic Log Debarker Machine show:
| ITEM | DESCRIPTION | UNIT | PARAMETER |
|---|---|---|---|
| 1 | Length of log | mm | 2000-2600 |
| 2 | Diameter of log | mm | Φ70-Φ600 |
| 3 | Length of blade | mm | 2750 |
| 4 | Linear speed of host machine | m/min | 60 |
| 5 | Diameter of driving roller | mm | 175 |
| 6 | Diameter of pressure bar roller | mm | 175 |
| 7 | Power of driving roller | kw | 7.5*2 |
| 8 | Power of pressure bar roller | kw | 7.5*2 |
| 9 | Power of feeding | kw | 7.5 |
| 10 | Total power | kw | 37.5 |
| 11 | Total weight | kg | 10000 |
| 12 | Overall dimensions | mm | 4550*2150*1380 |
