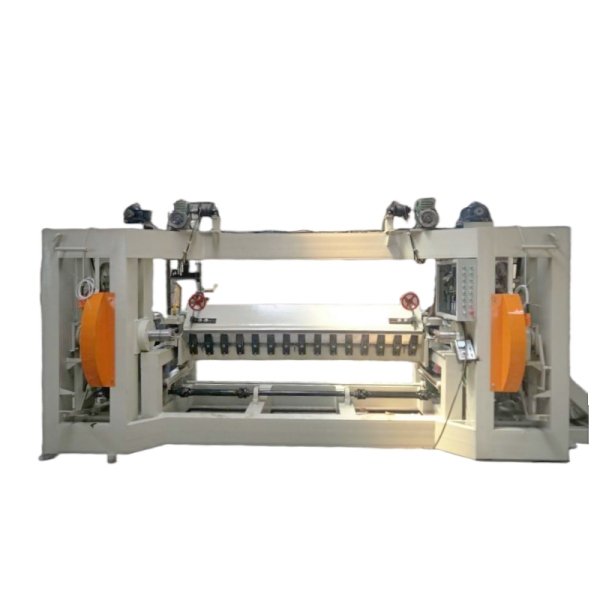

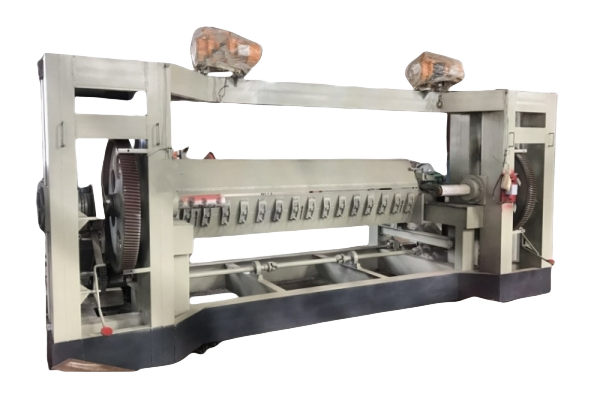

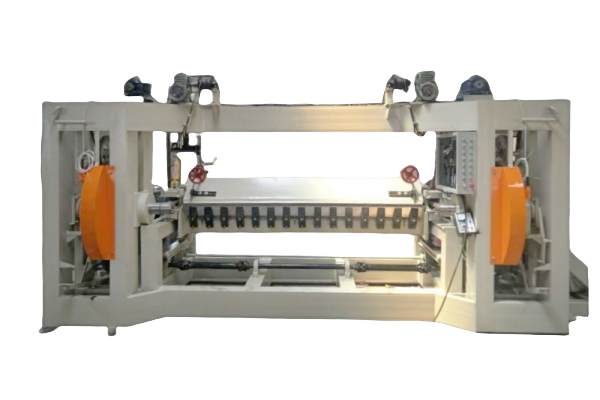

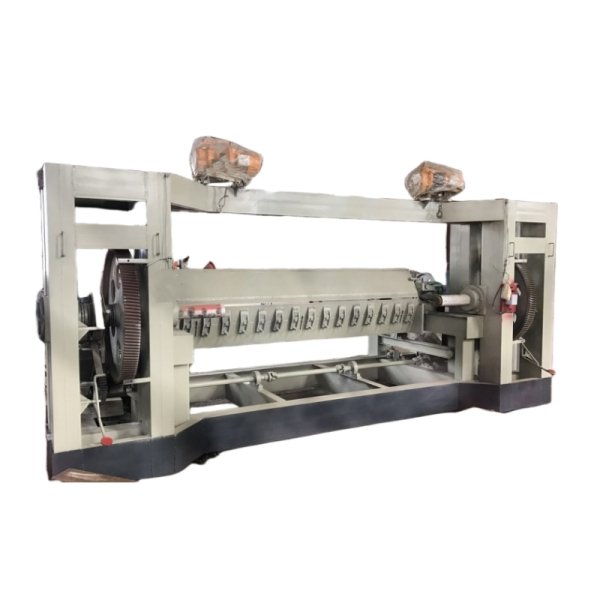

Heavy Duty Log Debarker Machine For Plywood Production
Heavy Duty Log Debarker Machine For Plywood Production
1. Weight 6500kgs-Heavy Duty Log Debarker
| Item | Description | Parameter |
|---|---|---|
| 1 | Name | Debarking machine |
| 2 | Specification | 2600*1900 |
| 3 | Weight | About 6500kg |
| 4 | Overall size | 5200*2200*2200mm |
| 5 | Application | Logs debarking |
| 6 | Rotary cutting logs length | 1900-2600mm |
| 7 | Rotary cutting logs diameter | φ200-φ1600 |
| 8 | Peeling thickness | 0.3-2.6mm |
| 9 | Rotate speed of chuck | 0-60rpm |
| 10 | Main motor power | 18.5kw |
| 11 | Pressure motor power | N/A |
| 12 | Oil pump motor power | 5.5kw |
2. weight 5000kgs-log Debarking machine
| Item | Description | Parameter |
|---|---|---|
| 1 | Name | Debarking machine |
| 2 | Specification | 2600*1900 |
| 3 | Weight | About 5000kg |
| 4 | Overall size | 5200*2200*2200mm |
| 5 | Application | Logs debarking |
| 6 | Rotary cutting logs length | 1900-2600mm |
| 7 | Rotary cutting logs diameter | φ200-φ1600 |
| 8 | Peeling thickness | 0.3-2.6mm |
| 9 | Rotate speed of chuck | 0-60rpm |
| 10 | Main motor power | 18.5kw |
| 11 | Pressure motor power | N/A |
| 12 | Oil pump motor power | 5.5kw |
